Most physical AI teams know they need data. Few know they need a stack of it. The capabilities a deployed humanoid, AV, or warehouse robot needs — perception, action, instruction following, multi-step workflow execution — each map to a different layer of training data, with different collection methods, annotation depth, and quality controls. The physical AI dataset stack is a way to think about those layers as one integrated system rather than four disconnected procurement decisions.
Key Takeaways
- The physical AI dataset stack has four layers tied to four real-world capabilities.
- Layer 1 covers human activity and demonstration data for perception and understanding.
- Layer 2 captures robot manipulation data for repeatable task execution.
- Layer 3 aligns vision, language, and action for instruction following at scale.
- Layer 4 supports long-horizon, multi-step task completion in real environments.
- Each layer feeds the next; weaknesses below propagate up the stack.
Why think about physical AI data as a stack?
Physical AI data behaves as a stack because each capability layer depends on the layers beneath it. Perception data without action data produces a model that sees but cannot move. Action data without language alignment produces a model that moves but cannot follow instructions. Long-horizon workflow data without robust instruction following collapses on the first multi-step task.
NVIDIA’s open physical AI dataset, released to the developer community, comprises thousands of hours of multicamera video at unprecedented diversity (NVIDIA, 2025), and even at that scale, downstream teams still need their own task-specific layers above it. Pre-training data is necessary, not sufficient.
Layer 1: What does human understanding data cover?
Human understanding data is human activity and demonstration data — first-person and third-person footage of humans doing tasks in real environments. It teaches the model what the world looks like and how humans move through it.
Human demonstration data: Video and sensor recordings of humans performing tasks, with annotations that align observations to actions, intents, or outcomes.
This layer feeds perception, scene understanding, and intent inference. Quality questions to ask:
- Does the data cover the environments your robot will operate in?
- Are demonstrations annotated at the atomic-action level, or just per-clip?
- Is participant consent documented and traceable?
Shaip’s L1 data collection layer captures real-world activity across kitchens, factories, warehouses, healthcare facilities, and roads — environments that match deployment contexts rather than lab conditions.
Layer 2: What does task execution data cover?
Task execution data is robot manipulation data — trajectories, joint states, object interactions, and contact dynamics for repeatable physical tasks. It teaches the model how to act, not just what to perceive.
Robot manipulation data: Time-stamped sequences of robot states, end-effector poses, and object interactions, captured during teleoperation, scripted execution, or demonstration replay.
This is where embodiment-specific structure shows up. Joint configurations, gripper geometries, and action spaces vary across robots, so manipulation data is rarely portable across embodiments without retargeting. Cross-embodiment efforts — such as datasets unifying 22 robot embodiments under one action schema (DeepMind/Stanford et al., 2024) — have made this slightly easier, but task-specific manipulation data remains a hands-on collection program.
Layer 3: What does VLA data add?
VLA data adds language alignment to vision and action — every episode carries a natural-language instruction tied to the trajectory that fulfills it.
Vision-Language-Action (VLA) data: Episode-level training data containing synchronized visual observations, natural-language instructions, and action trajectories with success labels.
This layer is what enables instruction following. Without it, a manipulation model can execute one trained task; with it, the same backbone can generalize across hundreds of instructions. The catch: language descriptions need to be atomic, specific, and aligned with actual action boundaries — not vague summaries. Annotation precision at this layer determines whether a fine-tuned VLA generalizes to new prompts or memorizes the training set.
Layer 4: What does long-horizon task data cover?
Long-horizon task data covers multi-step workflows — sequences where the robot must complete one sub-task to start the next. Cooking a meal, sorting a warehouse pallet, and assembling a kit are long-horizon tasks. Each requires the model to track state, recover from sub-task failure, and chain skills.
A research dataset focused on long-horizon tabletop manipulation comprised 200 episodes across 20 multi-step tasks with cluttered scenes (LHManip authors, arXiv, 2024) — small in scale but tightly structured. Production teams typically build evaluation sets with hundreds to thousands of long-horizon episodes, plus exception-handling traces for failure recovery.

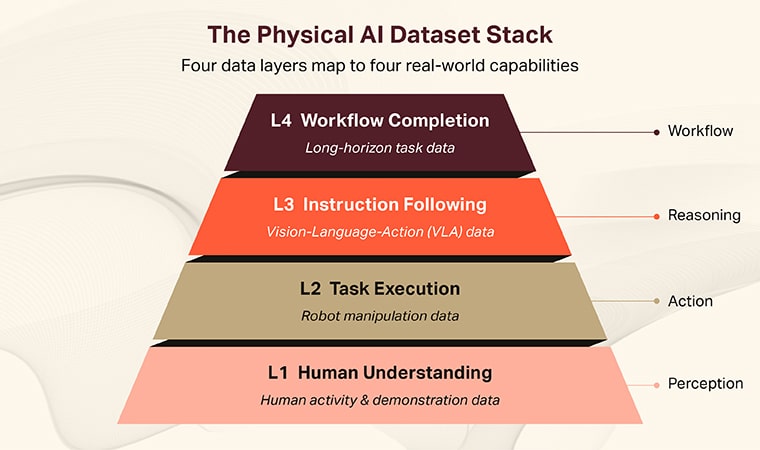

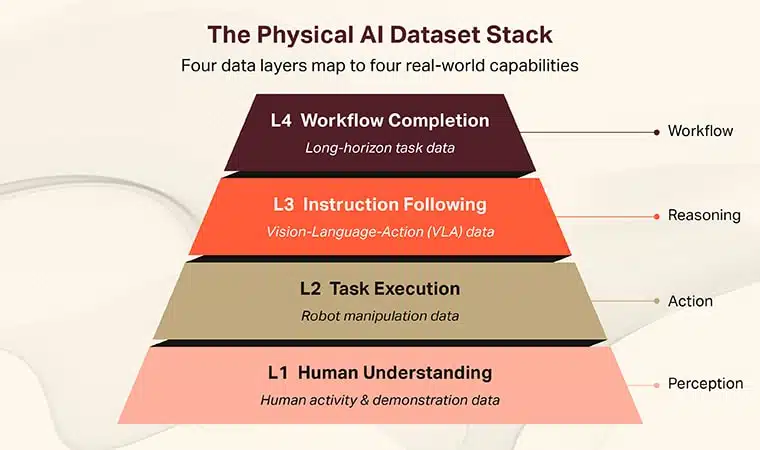

How the four layers feed deployment
| Layer | Capability Unlocked | What Teams Typically Miss |
|---|---|---|
| L1 — Human understanding | Perception, intent, scene context | Environment match to deployment site |
| L2 — Task execution | Repeatable manipulation | Contact dynamics, failure recovery |
| L3 — Instruction following | Cross-task generalization | Atomic, action-aligned language labels |
| L4 — Workflow completion | Multi-step real-world tasks | Exception handling, state tracking |
Picture an industrial automation team that nails L1 and L2 — clean perception, smooth manipulation in tests — but skips L3. Their robot picks any object you point at but cannot follow a verbal instruction without code changes. Skipping L4 has the same character: the system handles single tasks, then breaks on the second step. Each missing layer caps the deployment ceiling.
Certifications & Compliance for Physical AI Data
Physical AI data programs sit inside a tightening regulatory and procurement environment, especially for healthcare, autonomous mobility, and worker-safety use cases. Enterprise buyers increasingly require structured controls before signing collection or annotation contracts.
- ISO 27001 for information security management.
- SOC 2 Type II for service organization controls.
- HIPAA-aligned controls for clinical or rehabilitation motion data.
- GDPR and CCPA frameworks for participant consent and data rights.
Shaip operates under each of these frameworks across global collection programs. Buyers can review specifics on the security and compliance page before scoping a physical AI engagement.
Conclusion: The stack is the strategy
The physical AI dataset stack is not a procurement checklist; it is the architecture of a deployable system. Teams that treat it as one integrated build — human understanding feeding manipulation, manipulation feeding instruction following, all of it feeding long-horizon execution — ship robots that work in the real world. Shaip operates as the data infrastructure partner across all four layers, including multimodal AI workflows that bridge perception, language, and action under one engagement.
What is the physical AI dataset stack?
The physical AI dataset stack is a four-layer framework that maps training data types to robot capabilities. Layer 1 covers human activity for perception, Layer 2 covers robot manipulation, Layer 3 covers vision-language-action data for instruction following, and Layer 4 covers long-horizon multi-step tasks. Each layer enables a distinct deployment capability.
Do all four layers always need to be built in-house?
All four layers do not need to be built in-house. Public pretraining datasets cover much of Layer 1, and selective fine-tuning data at Layers 2 through 4 is where in-house or partner programs concentrate. The decisive question is whether the data matches the deployment environment, not whether it was self-collected.
Which layer is the most underestimated by physical AI teams?
Layer 4 — long-horizon task data — is the most underestimated. Teams often build strong perception and manipulation pipelines, then assume sequencing comes for free. In practice, multi-step tasks need explicit demonstrations, exception handling traces, and evaluation sets that catch sub-task failure modes. Without that, deployment stalls at single-task demos.
How does the physical AI dataset stack relate to VLA models?
The physical AI dataset stack relates to VLA models at Layer 3. VLA training data sits at the instruction-following layer, drawing on Layer 1 perception data and Layer 2 manipulation data as foundations. A well-built VLA needs all three lower layers to perform; Layer 4 then extends it into multi-step real-world workflows.
Is synthetic data part of the dataset stack?
Synthetic data is part of every layer of the dataset stack but rarely replaces real data outright. Synthetic generation scales rare events, edge cases, and embodiment variants. Real data anchors contact dynamics, sim-to-real transfer, and human-robot interaction. Mature programs use both, with paired benchmarks that monitor the sim-to-real performance gap.
How long does it take to build the full physical AI dataset stack?
Building a full physical AI dataset stack typically takes months to years, depending on scope and embodiment. Collection programs across diverse environments are the longest leg. Teams accelerate by starting with focused Layer 3 fine-tuning data for a target task, then expanding outward to Layer 4 workflows and broader Layer 1 coverage as the deployment use case stabilizes.
